EMAG

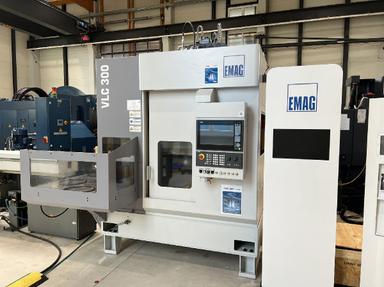

VLC 300Demo machine
Article number
92-000571
Category
Lathe
Sub Category
CNC lathe
Location
Extern
Unfortunately, this machine has already been sold. You may find a comparable machine in our product range. Alternatively, you can use our search agent, which will notify you as soon as a similar machine comes into our distribution.
See other latheUse our search agent
never miss a machine again
Technical specifications
In general
Chuck daiameter max.
400 mm
Swing diameter max.
420 mm
Workpiece diameter max.
300 mm
Workpiece height max.
250 mm
Travel X-Axis
890 mm
Travel Z-Axis
495 mm
Spindle
Technology
Direct drive spindle
Speed
3,100 rpm
Power
ca. 43 kW
Torque
ca. 462 Nm
C-Axis
0,01°
Media feed through
Coolant through spindle
Tool carrier X/Y/Z
Technology
Turret with 12 stations
Taper
BMT65
Tool drive
6,000 U/min, 24 Nm
Workpiece storage
Technology
Workpiece conveyor / Pick-up spindle
Workpiece quantity max.
10 pieces
Workpiece height max.
250 mm
Workpiece weight max.
40 kg
Equipment
Chip managment
Chip conveyor
Coolant mangament
Coolant pump with filter, 15 bar
Oilmistextraction
Mechanical
Demo machine – Subject to prior sale and error of technical data excepted
